Air Master Systems Solution Series fume hoods includes three bench mounted hoods with differing applications and specialties to meet a variety of laboratory situations. The Solution Work Station (SWS), the Solution Hood, and the Green Solution Chemical Filtration Hood. Contact your local distributor for specification and ordering information.

Solution Work Station

The Solution Work Station (SWS) is a bench mounted, ducted fume hood designed to allow 360 degree viewing.  The 7/32″ clear, laminated safety glass side panels protects students and on-lookers while giving them a clear view of the processes inside. Also included are two tube vapor sealed, T-8 fluorescent light with bulbs to make sure your experiments are clearly illuminated for all to see.

Safety plus flexibility

The Solution Series Solution Work Station laboratory fume hood’s design allows for back-to-back and side-by-side configurations for flexibility in designing undergraduate teaching and learning labs. It is available in varying sizes from a worktop width of 48″ with a hood opening of 37.5″ to a full 72″ worktop with a hood opening width of 61.5″. Since the point of a fume hood is to keep people safe, we install front-loaded valves with plumbing outlets within arms’ reach, while your head is outside of the sash.

Other features:

  • Optional 3″ x 6″ cupsink
  • Service slots for piping and electrical
  • Full-length finger lift
  • Louvered front for by-pass
  • Flush mount airfoil
  • Full frame construction
  • 10″ round S/S duct collar
  • Options include base cabinets, electrical accessories, and plumbing accessories

Solution Ducted Hood

The Solution Ducted Hood is a functional and stylish fume hood designed to fit a multitude of laboratory applications. The streamlines posts and radiuses airfoil, along with a 36-inch high viewing area offers a softer look than conventional fume hoods. This hood is applicable in both CAV and VAV designs.
Other features:

  • Full frame construction
  • Chain and sprocket shaft drive sash
  • UL listed poly resin liner
  • Flush mount airfoil
  • T-8 fluorescent lights
  • Full length finger lift
  • 60-100 FPM
  • Optimal interior working depth
  • Knock down ready

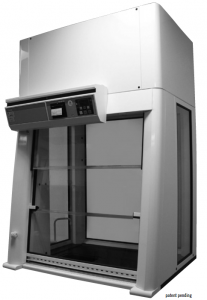

Green Solution Hood

The Green Solution Hood is Air Master Systems’ solution for a ductless chemical filtration fume hood. This hood is a massive energy saver without compromising usage, performance, or safety. The Green Solution ductless fume hood offers unprecedented safety in a hood that uses 96% less energy than standard ducted fume hoods and has an operating cost that is 70% lower! Compared to traditional fume hoods in operation today, The Green Solution Hood with Captair® Technology enables labs to:

  • Add a fume hood without affecting building HVAC
  • Save energy while maintaining 100 fpm face velocity
  • Cut energy costs by 96% and reduce operating costs by 70%
  • Handle liquids and solids (including acids, bases, solvents and powders)—individually or together—with a single hood
  • Virtually eliminate installation costs
  • Operate safely without polluting and contaminating the environment
  • Maintain productivity without changing the way lab technicians work
  • Add plumbing and electrical to the fume hood posts

    All hoods are commissioned by our factory personnel and all our fume hoods are certified with a Valiquest Payback. This certification by our lab assures researcher safety as well as economic feasibility.
